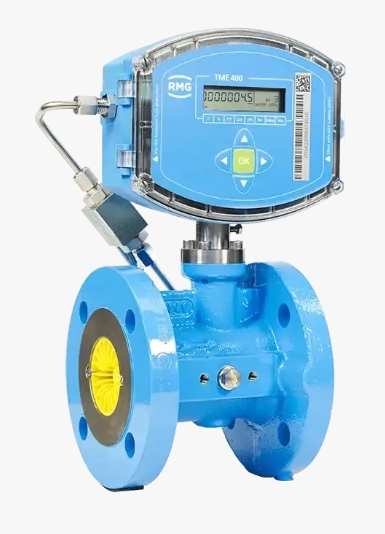

TME 400 type volumeters offer a number of advantages over classical mechanical turbine meters like display of actual flow rate, data and parameter archiving, various interfaces and optionally integrated volume correction.

The pressure and temperature measurement are integrated directly into the meter.

• Low-torque metering system with long-term stability Turbine design with a minimum of moving parts.
• Battery or mains operation Autonomous operation with lithium cell for 6+ years or external power supply and backup battery to protect against power failures.
• Explosion protection The TME 400 is intrinsically safe and can be used in zones 1 and 2.
• Outputs Pulse outputs HF and LF (variable), alarm output, current output (4-20 mA, optional).
• Flow display
• Digital interface serial RS 485 interface for Modbus connection.
• Storage of maximum value (Qm)
• Archive Integrated fail-safe parameter, event and measured value archive.
• RMGViewTME Provided software for convenient parameterization and management of device and stored data.
• Volume corrector Integrated fully-fledged compact volume corrector including digital pressure and temperature measurement.
• Calculation of the K coefficient according to SGERG88, AGA8 GROSS M1 and M2 as well as AGA NX19.
• Display Operating volume, standard volume, current and maximum flow can be displayed in measurement and standard condition.
• Separate Terminal block Inputs for pulses, pressure and temperature can be sealed separately from the rest. The lithium battery can be exchanged without opening the case.
